Driveshaft Heat Shield, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the nuts -arrows- and bolt -2- for the underbody trim panel -1- in the heat shield area.
-- Remove the nuts -arrows-.
-- Remove the exhaust system clamping sleeve. Refer to OVERVIEW - MUFFLER [CWGD, DECA] or OVERVIEW - MUFFLER [CYMC] and OVERVIEW - EMISSIONS CONTROL SYSTEM [CWGD, DECA] or OVERVIEW - EMISSIONS CONTROL SYSTEM [CYMC] .

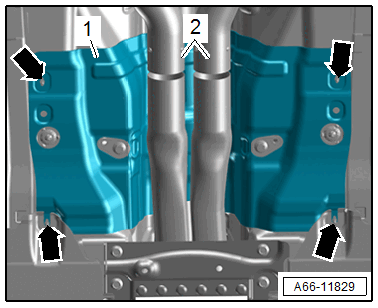

-- Free up the heat shield -1- from the stud bolts -arrows-.
-- Remove the heat shield from between the exhaust system -2- forward.
