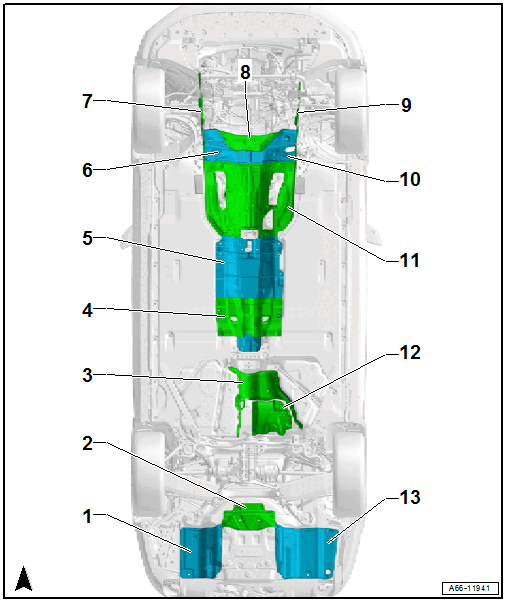

Component Location Overview - Heat Shield
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There is a risk of explosions and fatal injuries due to damaged natural gas tanks.
- The natural gas tank must be checked for damage if components in the rear side or rear area are removed due to damage, such as the bumper cover, rear lid, underbody trim panels, longitudinal members, rear lid end piece, etc.
- Check for damage on fuel tanks. Refer to the appropriate Service Information .
- Heat Shield
- For the rear muffler
- Right
- Overview. Refer to OVERVIEW - REAR HEAT SHIELDS .
- Removing and Installing. Refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the luggage compartment recess
- Overview. Refer to OVERVIEW - REAR HEAT SHIELDS .
- Removing and Installing. Refer to LUGGAGE COMPARTMENT RECESS HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the fuel tank
- Overview. Refer to the appropriate Service Information .
- Heat Shield
- For the driveshaft
- Overview. Refer to OVERVIEW - REAR HEAT SHIELDS .
- Removing and Installing. Refer to DRIVESHAFT HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the transmission tunnel
- Overview. Refer to OVERVIEW - REAR HEAT SHIELDS .
- Removing and Installing. Refer to TRANSMISSION TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the rear longitudinal member
- Right
- Overview. Refer to OVERVIEW - FRONT HEAT SHIELDS .
- Removing and Installing. Refer to REAR HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Heat Shield
- For the front longitudinal member
- Right
- Overview. Refer to OVERVIEW - FRONT HEAT SHIELDS .
- Removing and Installing. Refer to FRONT HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Heat Shield
- For the plenum chamber bulkhead
- Overview. Refer to OVERVIEW - FRONT HEAT SHIELDS .
- Removing and Installing. Refer to PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the front longitudinal member
- Left
- Overview. Refer to OVERVIEW - FRONT HEAT SHIELDS .
- Removing and Installing. Refer to FRONT HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Heat Shield
- For the rear longitudinal member
- Left
- Overview. Refer to OVERVIEW - FRONT HEAT SHIELDS .
- Removing and Installing. Refer to REAR HEAT SHIELD FOR LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Heat Shield
- For the top of the front tunnel
- Overview. Refer to OVERVIEW - FRONT HEAT SHIELDS .
- Removing and Installing. Refer to UPPER FRONT TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the center of the exhaust system
- Overview. Refer to OVERVIEW - REAR HEAT SHIELDS .
- FWD versions: removing and installing. Refer to CENTER EXHAUST SYSTEM HEAT SHIELD, REMOVING AND INSTALLING, FWD VERSION .
- AWD versions: removing and installing. Refer to CENTER EXHAUST SYSTEM HEAT SHIELD, REMOVING AND INSTALLING, AWD VERSION .
- g-tron: removing and installing. Refer to CENTER EXHAUST SYSTEM HEAT SHIELD, REMOVING AND INSTALLING, G-TRON .
- Heat Shield
- For the rear muffler
- Left
- Overview. Refer to OVERVIEW - REAR HEAT SHIELDS .
- Removing and Installing. Refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
