Center Exhaust System Heat Shield, Removing And Installing, Fwd Version: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear section of the exhaust system. Refer to OVERVIEW - MUFFLER [CWGD, DECA] or OVERVIEW - MUFFLER [CYMC] .
-- Remove the left rear underbody trim panel. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

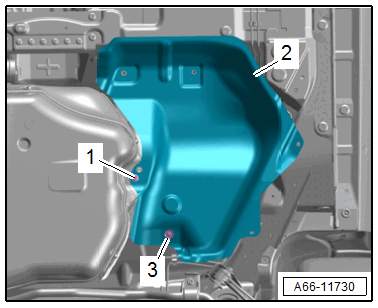

-- Remove the nut -3- and bolt -1-.
-- Remove the heat shield -2-.
