Center Exhaust System Heat Shield, Removing And Installing, AWD Version: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear section of the exhaust system. Refer to OVERVIEW - MUFFLER [CWGD, DECA] or OVERVIEW - MUFFLER [CYMC] .

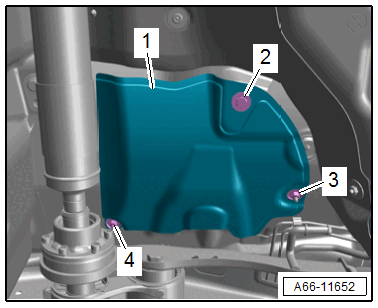

-- Remove the nuts -3 and 4- and bolt -2-.
-- Remove the heat shield -1-.
