Roof Frame Cover, Removing And Installing, A4 AVANT: Installing

Install in reverse order of removal and note the following:

• The vehicle and the roof frame cover must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove the adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04  and let dry.

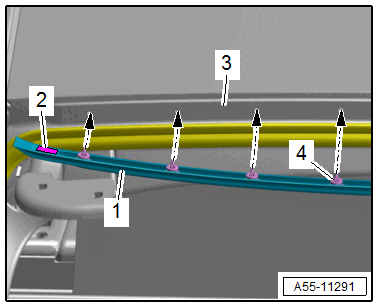

-- Align the roof frame cover -1- with the centering pin -4- on the body -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the protective film from the adhesive tape -2-.

-- Press the roof frame cover on until it audibly engages.

-- Press the roof frame cover on near the adhesive surface.

• Resting time approximately 30 minutes at room temperature
