Rear Lid, Removing And Installing, A5 Cabriolet: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear lid trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

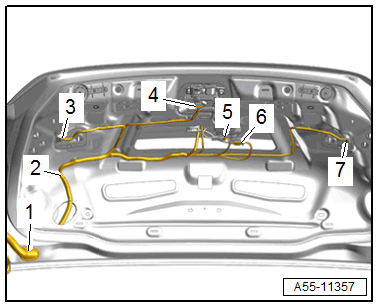

-- Disconnect the connectors -3 to 7-.
-- Free up the wiring harness -2- on the hood.
-- Remove the grommet -1- through the body opening on the rear lid and remove the wiring harness.

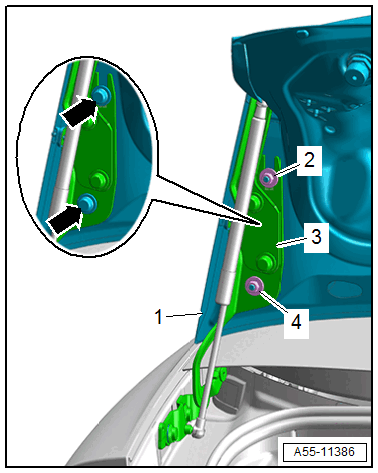

-- Pry out the covers -arrows-.
-- Loosen the nut -2-.
-- Remove the nut -4-.
-- With a second technician, remove the rear lid -1- from the hinge -3- and lay it on a soft surface.
