Hinge Forward/Back Adjustment, A4 Sedan and A5 Coupe:

WARNING: This page is about a different variant/trim than selected.

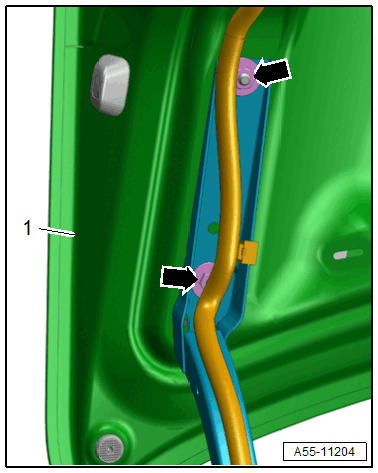

GWWA55-11204Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nuts -arrows-.

-- Adjust the rear lid -1- lengthwise.

-- Tighten the nuts.

Tightening Specifications
