Length Adjustment at Hinge, A4 Avant:

WARNING: This page is about a different variant/trim than selected.

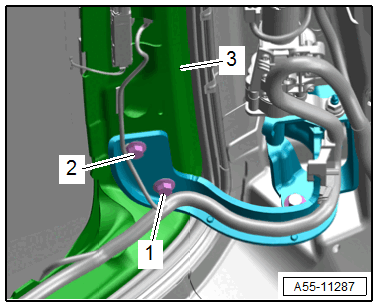

GWWA55-11287Courtesy of AUDI OF AMERICA, LLC

-- Loosen bolts -1 and 2-.

-- Adjust the rear lid -3- lengthwise.

-- Tighten the bolts.

Tightening Specifications
