Height Adjustment at Hinge, A4 Avant:

WARNING: This page is about a different variant/trim than selected.

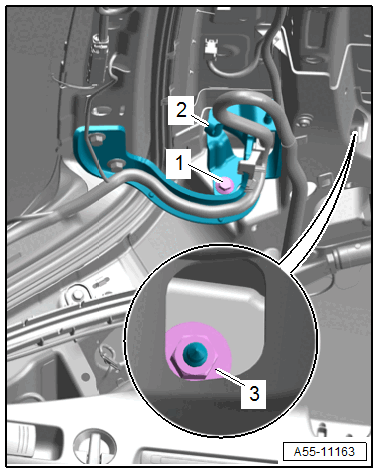

GWWA55-11163Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -1- and the nut -3-.

-- Adjust the height of the rear lid at the hinge -2-.

-- Tighten the bolt and nut.

Tightening Specifications
