Adjustment Dimension, A5 SPORTBACK

WARNING: This page is about a different variant/trim than selected.

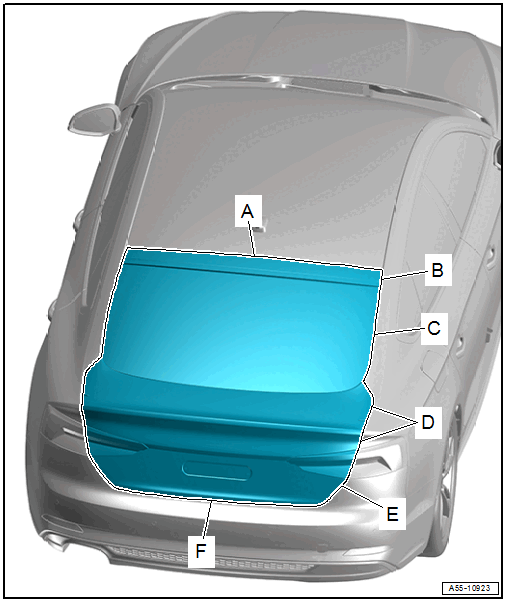

Fig 1: Adjustment Dimension, A5 Sportback

GWWA55-10923

Courtesy of AUDI OF AMERICA, LLC

A - Rear Lid to Roof
- Gap dimension = 5.0 mm
B - Rear Lid to Top of Side Panel
- Gap dimension = 3.5 mm
C - Rear Window to Side Panel
- Gap dimension = 3.2 mm
D - Rear Lid to Side Panel
- Gap dimension = 3.2 mm
E - Rear Lid to Bumper
- Gap dimension = 3.5 mm
F - Rear Lid to Bumper
- Gap dimension = 3.7 mm
