Adjustment Dimension, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

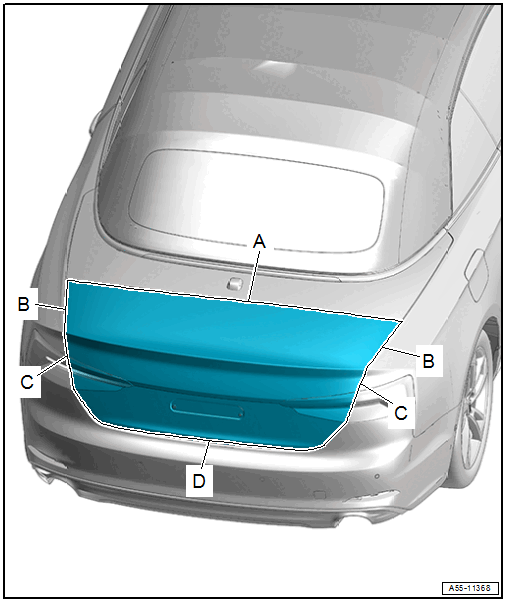

Fig 1: Adjustment Dimension, A5 Cabriolet

GWWA55-11368

Courtesy of AUDI OF AMERICA, LLC

A - Rear Lid to the Convertible Top Compartment
- Gap dimension = 4.0 mm
B - Rear Lid to Side Panel
- Gap dimension = 3.5 mm
C - Rear Lid to Side Panel
- Gap dimension = 3.5 mm
D - Rear Lid to Bumper
- Gap dimension = 5.0 mm
