Adjustment Dimension, A4 Sedan, A5 Coupe

WARNING: This page is about a different variant/trim than selected.

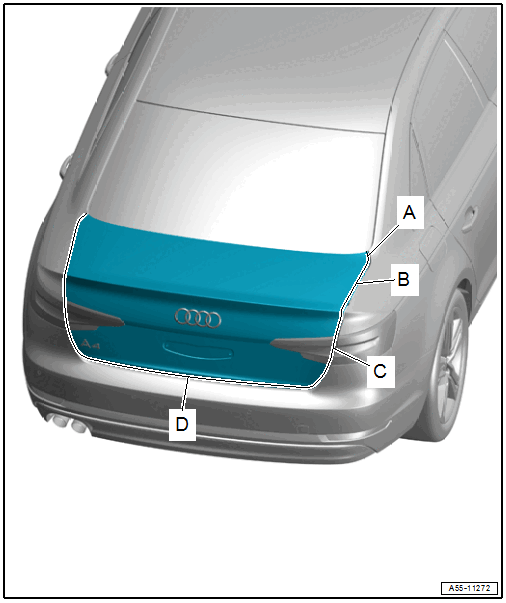

Fig 1: Adjustment Dimension, A4 Sedan, A5 Coupe

Courtesy of AUDI OF AMERICA, LLC

A - Rear Lid to Top of Side Panel
- A4: gap dimension = 3.5 mm
- A5: gap dimension = 3.2 mm
B - Rear Lid to Side Panel
- A4: gap dimension = 3.5 mm
- A5: gap dimension = 3.2 mm
C - Rear Lid to Side Panel
- A4: gap dimension = 3.5 mm
- A5: gap dimension = 3.6 mm
D - Rear Lid to Rear Lid End
- Gap dimension = 5.0 mm
