Rear Lid Control Module -J605-, REMOVING AND INSTALLING, A5 SPORTBACK: Removing
WARNING: This page is about a different variant/trim than selected.

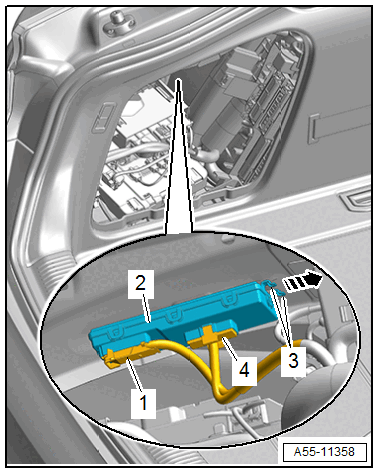

-- Open the cover for the left luggage compartment side trim panel.
-- Disconnect the connectors -1 and 4-.
-- Release the catches -3- and at the same time push the control module -2- forward in direction of -arrow-.
- Doing so disengages the brackets from the guides.
-- Remove the Rear Lid Control Module -J605-.
