Rear Lid Control Module -J605-, REMOVING AND INSTALLING, A4 AVANT: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the roof end strip. Refer to the appropriate Service Information .

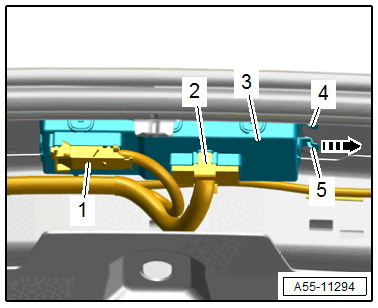

-- Disconnect the connectors -1 and 2-.
-- Release the catches -4 and 5- and at the same time push the control module -3- to the right side in direction of -arrow-.
- Doing so disengages the brackets from the guides.
-- Remove the Rear Lid Control Module -J605-.
