Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.

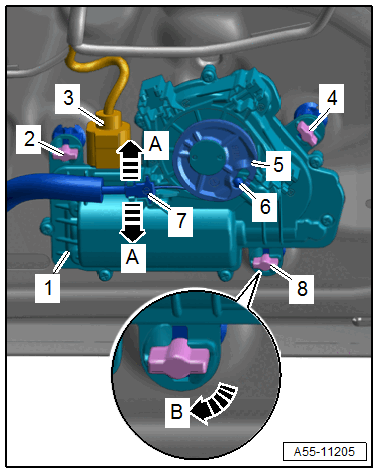

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
-- Disengage the cable bracket -7- to do so release the catches in direction of -A arrows-.
-- Disengage the release cable nipple -6- from the release lever -5-.
-- Disconnect the connector -3-.
-- Release the catches -2, 4 and 8- by turning them 90° clockwise in direction of -arrow B-.
-- Remove the Rear Lid Closing Assist Motor -V382- -1-.
