Power Rear Lid Opening Sensors -G750- / -G760-, Removing And Installing, Version 2: Removing
WARNING: This page is about a different variant/trim than selected.

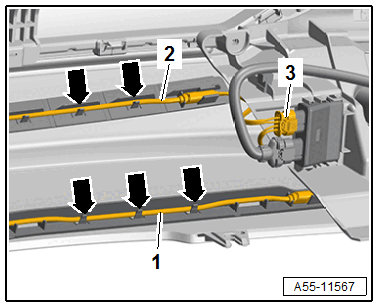

-- Remove the nuts/bolt -arrows- on the lower section of the bumper cover.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connector -3-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Free up the sensor -1 and 2- at the brackets -arrows-.
-- Remove the sensor.
