Overview - Sensor-Controlled Power Rear Lid Opener, Version 2

WARNING: This page is about a different variant/trim than selected.

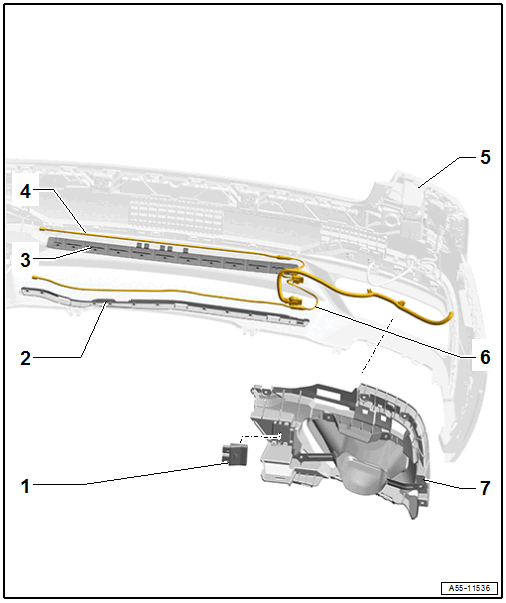

Fig 1: Exploded View Of Sensor-Controlled Power Rear Lid Opener, Version 2

Courtesy of AUDI OF AMERICA, LLC

Power Rear Lid Opening Control Module -J938-
- Removing and Installing. Refer to Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING, VERSION 2 .
Securing Strip
- For Power Rear Lid Opening Sensor -G750-
Securing Strip
- Power Rear Lid Opening Sensor 2 -G760-
Power Rear Lid Opening Sensor 2 -G760-
- Removing and Installing. Refer to POWER REAR LID OPENING SENSORS -G750- / -G760-, REMOVING AND INSTALLING, VERSION 2 .
Rear Bumper Cover
Power Rear Lid Opening Sensor -G750-
- Removing and Installing. Refer to POWER REAR LID OPENING SENSORS -G750- / -G760-, REMOVING AND INSTALLING, VERSION 2 .
Mount
- For the tail pipe trim and Power Rear Lid Opening Control Module -J938-
