Latch, Removing And Installing, A5 Cabriolet: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear lid lower trim panel and the latch cover. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

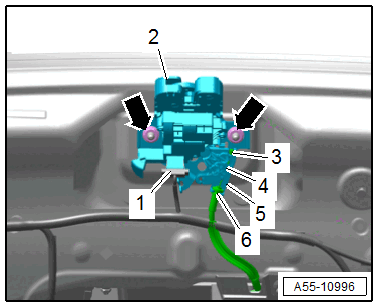

-- Disconnect the connector -1-, remove the nuts -arrows- and remove the rear lid lock.
-- Remove the cable bracket -6- from the rear lid latch mount -5-.
-- Disengage the cable -3- from the release lever -4-.
