Hinge, Removing And Installing, A5 Cabriolet: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear lid. Refer to REAR LID, REMOVING AND INSTALLING, A5 CABRIOLET .

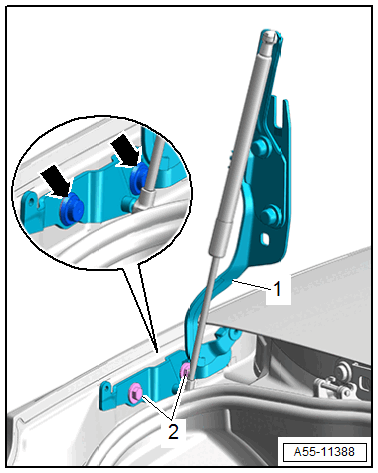

-- Pry out the covers -arrows-.

GWWA55-11388Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Remove the hinge -1-.
