Hinge, Removing And Installing, A4 Sedan And A5 Coupe: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear lid. Refer to REAR LID, REMOVING AND INSTALLING, A4 SEDAN AND A5 COUPE .
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- A4 equipment version with fixed backrest: free up the emergency release cable on the hinge.

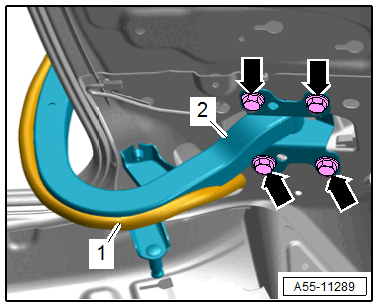

-- Free up the wiring harness -1-.
-- Remove the screws -arrows-.
-- Remove the hinge -2-.
