Grip Piece, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

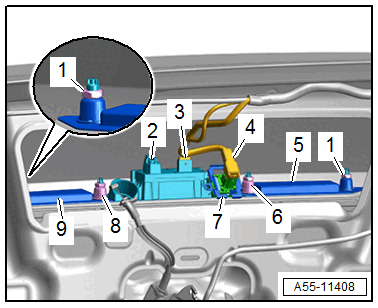

-- Remove the lock cylinder. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
-- Disconnect the connector -3-.
-- Remove the cap nuts -6 and 8-.
-- Vehicles with rearview camera: remove the securing bracket -7- with rearview camera -4-.
-- Remove the cap nuts -1- and remove together with the anti-theft protection -5 and 9-.
-- Remove the grip piece downward out of the opening in the body.
