Gas-Filled Strut Mount, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the gas-filled strut on the mount from the ball pin. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .

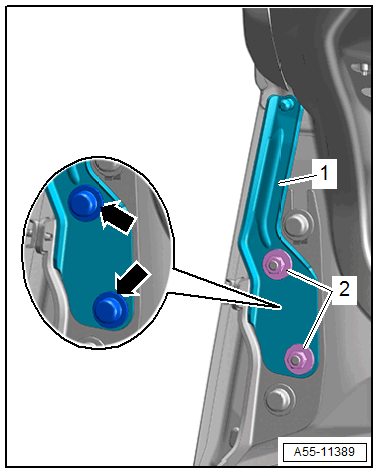

-- Pry out the covers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2-.

-- Remove the gas-filled strut mount -1-.
