Body Adjusting Buffer
WARNING: This page is about a different variant/trim than selected.
Removing

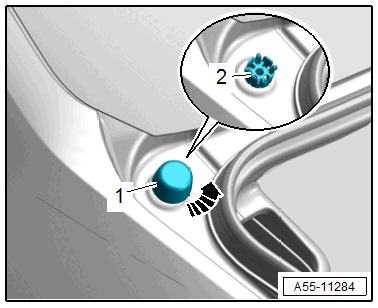

-- Turn the adjusting buffer -1- counter-clockwise -arrow- to remove.
-- Remove the adjusting buffer locking mechanism -2- from the threaded pin.
Installing
Install in reverse order of removal and note the following:
TIP:
To secure the adjusting buffer, the Pop Rivet Screw: WHT 005 180 must be inserted using the Pop Rivet Pliers: VAG1765C and Pop Rivet Pliers - Supplement Pieces VAG1765C/2. Refer to the appropriate Service Information for detailed information. The >>infomedia search<< can be used here to search for the Pop Rivet Screw: WHT 005 180 in the respective article.
-- Adjust the adjusting buffer. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
