Adjusting Buffer, Removing And Installing, A4 AVANT And A5 SPORTBACK: Removing

WARNING: This page is about a different variant/trim than selected.

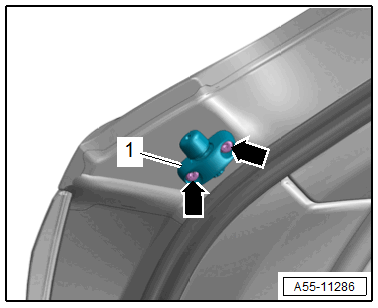

-- Remove the screws -arrows-.

GWWA55-11286Courtesy of AUDI OF AMERICA, LLC

-- Remove the adjusting buffer -1-.
