Striker, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Mark the striker installation position for reinstallation.

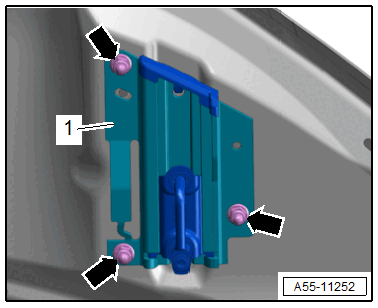

-- Remove the nuts -arrows-.

GWWA55-11252Courtesy of AUDI OF AMERICA, LLC

-- Remove the striker -1-.
