Overview - Release on Latch

WARNING: This page is about a different variant/trim than selected.

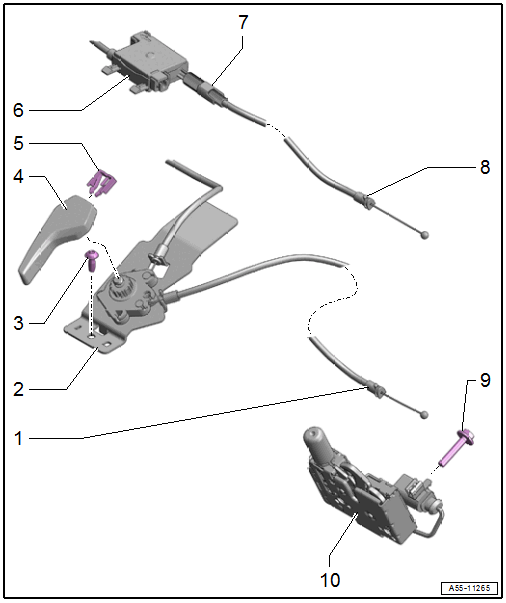

Fig 1: Exploded View Of Release On Latch

Courtesy of AUDI OF AMERICA, LLC

Release Cable
- For releasing latches
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
Mounting Bracket with Release Cable
- For the hook release lever
- Removing and Installing. Refer to MOUNTING BRACKET WITH HOOK RELEASE LEVER RELEASE CABLE, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Hook Release Lever
- Removing and Installing. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
Clip
- For the release lever
Coupling with Release Cables
- For the latches
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
Adjusting Thumbwheel
- For the release cable
- For adjusting the trigger point for the latches
Release Cable
- For releasing latches
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
Bolt
- 12 Nm
- Quantity: 2
Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
