Overview - Release in Vehicle Interior

WARNING: This page is about a different variant/trim than selected.

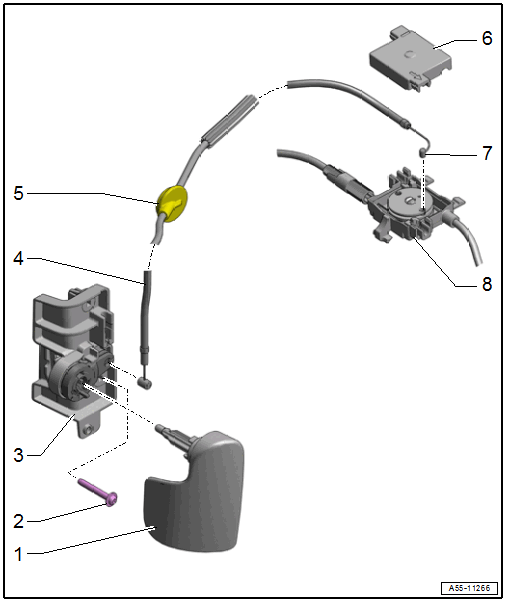

Fig 1: Exploded View Of Release Cable

Courtesy of AUDI OF AMERICA, LLC

Operating Lever
- For the latch
- Removing and Installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Mounting Bracket
- For latch release lever
- Removing and Installing. Refer to LATCH RELEASE LEVER MOUNTING BRACKET, REMOVING AND INSTALLING .
Release Cable
- For the latch
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
Grommet
- Check for proper seating
Cap
Nipple
- Is inserted in the coupling guide element
Coupling with Release Cables
- For the latches
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
