Latch Release Lever, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

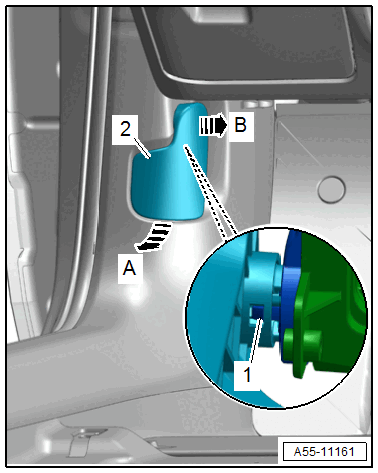

-- Pull the operating lever -2- toward the rear in direction of -arrow A- to release the hood and hold it in this position.

GWWA55-11161Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -1- and keeping the release lever level, pull it out of its mount toward the center of the vehicle in direction of -arrow B-.
