Hook Release Lever, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

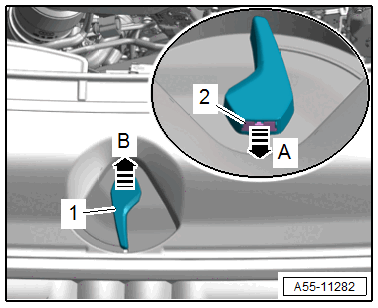

Version 1:
TIP:
Version 1 has a cut-out for placing the screwdriver.
-- Pull the clip -2- out of the release lever -1- slightly in direction of -arrow A- using a small screwdriver.
-- Remove the release lever upward in direction of -arrow B-.

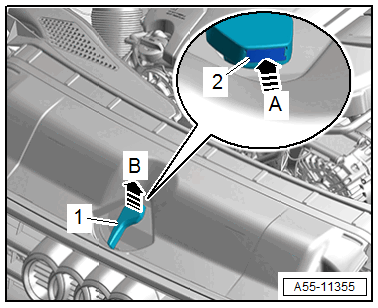

Version 2:
TIP:
Version 2 does not have a cut-out for placing the screwdriver.
-- Push the clamp -2- inward in direction of -arrow A- and at the same time remove the operating lever -1- upward in direction of -arrow B-.
