Hood, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the washer nozzles. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .

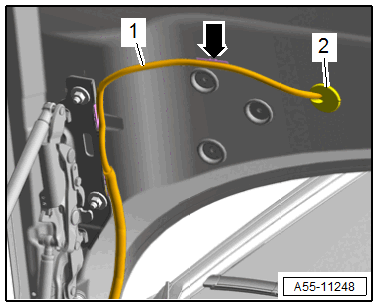

-- Remove the grommet -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Guide the wiring harness -1- out of the hood and free it up -arrow-.

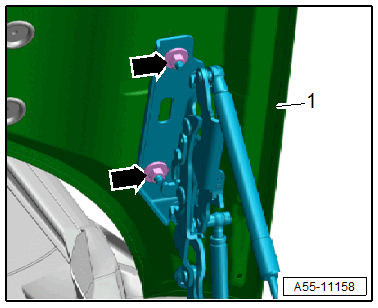

-- Remove the nuts -arrows- from the hinge.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the hood -1-.
