Hinges, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Vehicles with pedestrian protection: disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the front lid. Refer to HOOD, REMOVING AND INSTALLING .
-- If required, remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Vehicles with pedestrian protection: remove the pedestrian protection trigger. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
-- Remove the gas-filled strut. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
-- Bring the hinge into the "closed" position.

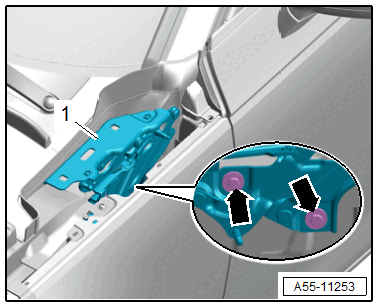

-- Mark the hinge installation position for reinstallation.
-- Remove the screws -arrows-.
-- Remove the hinge -1-.
