Striker, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Bring the convertible top into its service position. Refer to the appropriate Service Information .

-- Mark the striker installation position for reinstallation.

-- Remove the screws -arrows-.

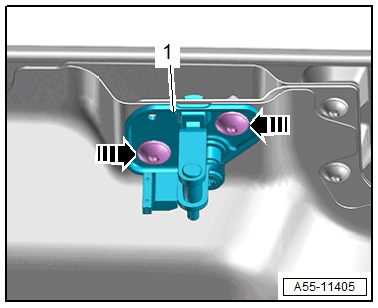

GWWA55-11405Courtesy of AUDI OF AMERICA, LLC

-- Remove the striker -1-.
