Stop Buffer, Removing And Installing: Removing

-- Bring the convertible top into its service position. Refer to the appropriate Service Information .

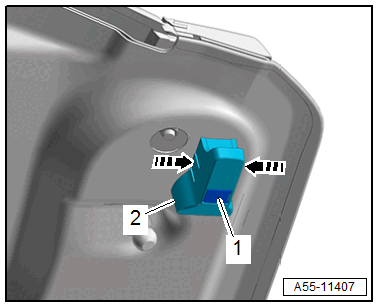

-- Remove the expanding pin -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the retainers together in direction of -arrows-, disengage the stop buffer -2- and pivot it out.
