Convertible Top Compartment Seal, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Bring the convertible top into its service position. Refer to the appropriate Service Information .

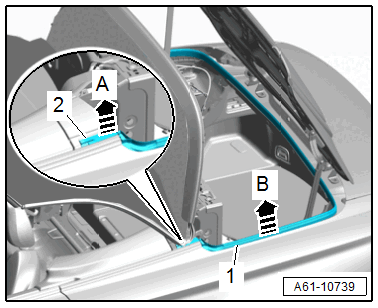

-- Remove the convertible top compartment seal -2- from the body seam near the window shaft strip in direction of -arrow A-.
-- Remove the convertible top compartment seal -1- from the convertible top compartment in direction of -arrow B-.
