Convertible Top Compartment Seal, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

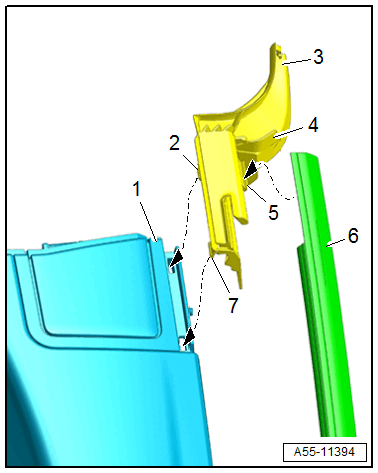

-- Position the convertible top compartment seal -3- on the body seam and press in at the same time.
- The tabs -2 and 7- must engage in the mounts on the side trim panel -1-.
- The retaining strip -5- must engage at the same time under the window shaft strip -6-.
-- The convertible top compartment seal must be flush with the side trim panel.
-- The sealing lip -4- must be positioned behind the body seam.
