Side Adjustment at Striker
WARNING: This page is about a different variant/trim than selected.
 Courtesy of AUDI OF AMERICA, LLC
|

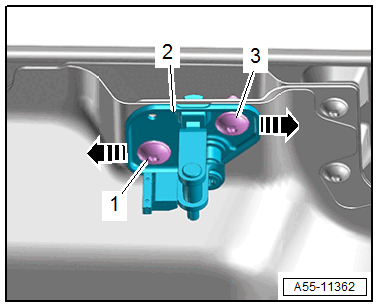

-- Loosen the bolts -1 and 3-.
-- Move the striker -2- in direction of -arrows-.
- During the closing test, the convertible top compartment cover must fall into the latch and engage completely.
-- Tighten the bolts.
Tightening Specifications
