Height Adjustment at Striker

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

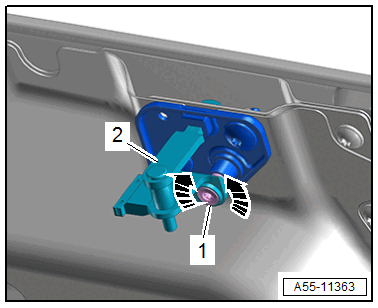

-- Adjust the striker -2- by turning the adjusting screw -1- -arrows-.

During the closing test, the convertible top compartment cover must fall into the latch and engage completely.

-- Adjust the striker height if necessary.
