Convertible Top Compartment Cover Hinge, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

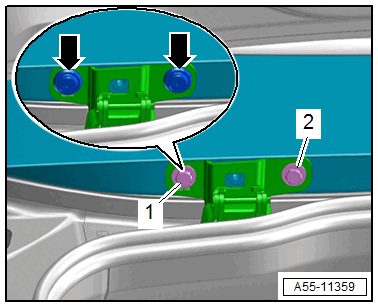

-- Open the rear lid and remove the cap -arrows-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Mark the bolts for reinstallation.
-- Remove the bolts -1 and 2-.
-- Remove the cap -2-.

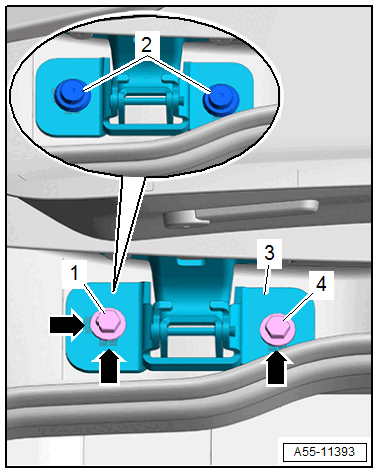

 Courtesy of AUDI OF AMERICA, LLC
|
-- Mark the bolts for reinstallation.
-- Remove the bolts -1 and 4-.
-- Remove the hinge -3-.
