Adjusting Buffer, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Bring the convertible top into its service position. Refer to the appropriate Service Information .

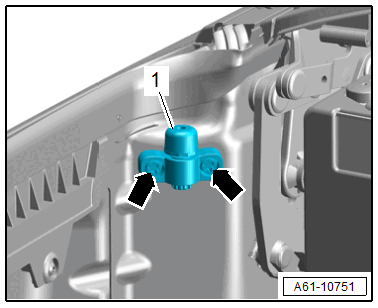

-- Remove the bolts -arrows- and then the adjusting buffer -1-.

GWWA61-10751Courtesy of AUDI OF AMERICA, LLC
