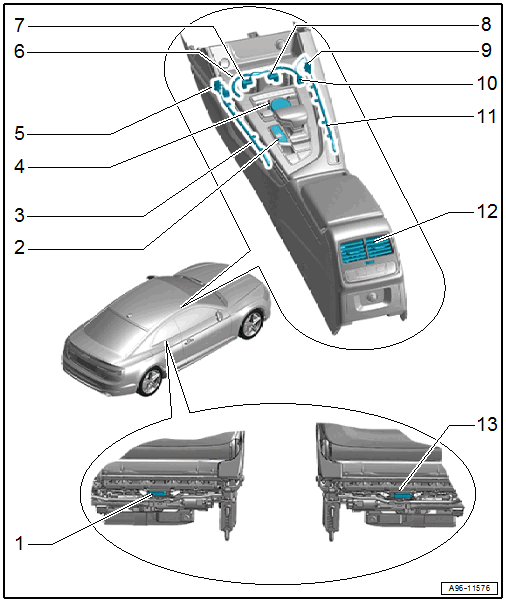

Overview - Center Console Lamps
WARNING: This page is about a different variant/trim than selected.
- Left Rear Footwell Lamp -W45-
- Removing and installing. Refer to LEFT/RIGHT REAR FOOTWELL LAMP -W45- / -W46-, REMOVING AND INSTALLING .
- Selector Lever Transmission Range Display -Y5-
- Removing and installing. Refer to Selector Lever Transmission Range Display -Y5-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Ambient Lighting Lamp
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 2 -L193- / -L194-, REMOVING AND INSTALLING .
- Multimedia System Control Head Contour Illumination Lamp 1 -L233-
- If an LED is faulty, then the multimedia system control head must be replaced
- Front Center Console Ambient Lighting Bulb 1 -L193-
- Removing and installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 2 -L193- / -L194-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Cupholder Ambient Lighting
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR CUPHOLDER AMBIENT LIGHTING LAMP -L232- / -L246-, REMOVING AND INSTALLING .
- Cupholder Ambient Lighting Lamp 2 -L246-
- Removing and installing. Refer to CUPHOLDER AMBIENT LIGHTING LAMP -L232- / -L246-, REMOVING AND INSTALLING .
- Cupholder Ambient Lighting Lamp -L232-
- Removing and installing. Refer to CUPHOLDER AMBIENT LIGHTING LAMP -L232- / -L246-, REMOVING AND INSTALLING .
- Front Center Console Ambient Lighting Bulb 2 -L194-
- Removing and installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 2 -L193- / -L194-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Cupholder Ambient Lighting
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR CUPHOLDER AMBIENT LIGHTING LAMP -L232- / -L246-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Ambient Lighting Lamp
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 2 -L193- / -L194-, REMOVING AND INSTALLING .
- Rear Vent Illumination Bulb -L216-
- Replacing. Refer to OVERVIEW - CENTER CONSOLE .
- Cannot be replaced separately if faulty.
- Right Rear Footwell Lamp -W46-
- Removing and installing. Refer to LEFT/RIGHT REAR FOOTWELL LAMP -W45- / -W46-, REMOVING AND INSTALLING .

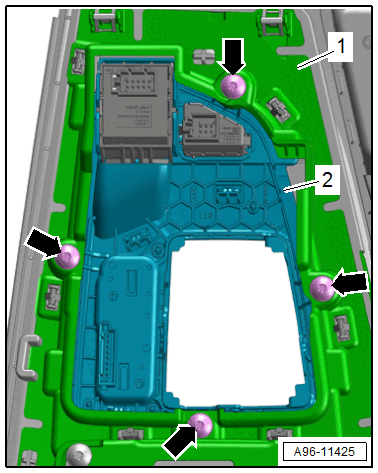

Tightening Specification Selector Lever Transmission Range Display Y5
-- Tighten the bolts -arrows- to 1.1 Nm.
