Left/Right Luggage Compartment Lamp -W18- / -W35-, Removing And Installing, SPORTBACK: Removing

WARNING: This page is about a different variant/trim than selected.

-- Release the retainer -1-.

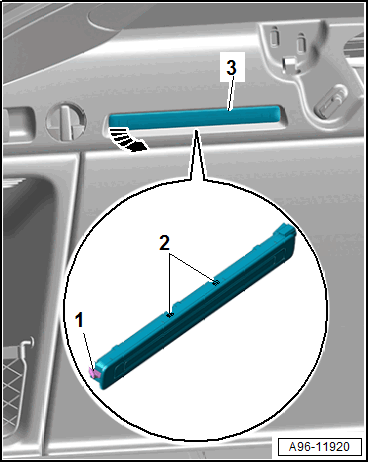

Fig 1: Locating Left/Right Luggage Compartment Lamp -W18- / -W35-
GWWA96-11920Courtesy of AUDI OF AMERICA, LLC

-- Tilt the luggage compartment lamp -3- out of the mount in direction of -arrow-, which will release the tabs -2- on the top and bottom side.

-- Disconnect the connector.
