Left/Right Luggage Compartment Lamp -W18- / -W35-, Removing And Installing, Coupe, Cabriolet: Removing

WARNING: This page is about a different variant/trim than selected.

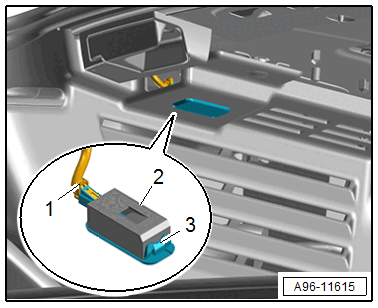

-- Press the tab -3- in using a flat-head screwdriver and pry out the luggage compartment lamp -2-. (shown on coupe).

GWWA96-11615Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
