Left/Right Front FOOTWELL Lamp -K268- / -K269-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Press the tab -3- in using a flat-head screwdriver and pry out the footwell lamp -2-.

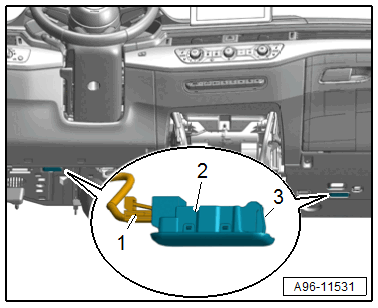

Fig 1: Locating Left & Right Front Footwell Lamp -K268- / -K269-
GWWA96-11531Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
