Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
-- Free up the wiring harness -2-.

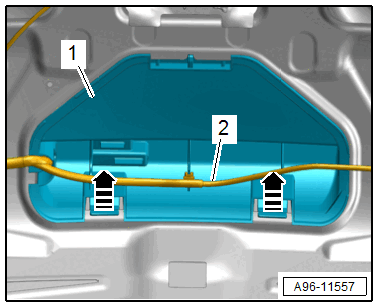

-- Release the retainers in direction of -arrows- and remove the cover -1-.

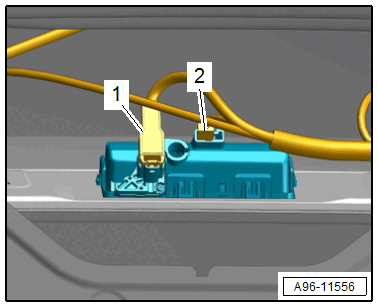

-- Disconnect the connector -1-.
-- If equipped, disconnect the antenna wire -2-.

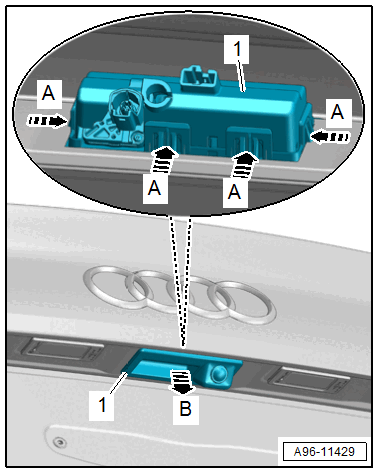

-- Release the side tabs in direction of -arrows A- and remove the button -1- outward in direction of -arrow B-.
