Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the left luggage compartment side trim panel until the power pivoting trailer hitch button is accessible. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

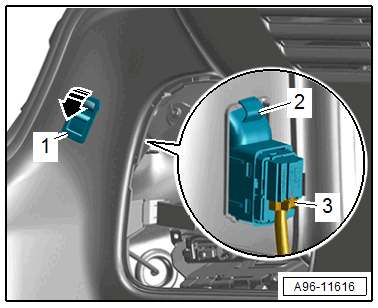

-- Release the clip -2- and press the trim -1- with the switch out of the luggage compartment side trim panel in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Release the hooks in direction of -arrows- carefully with a small screwdriver.

Fig 1: Carefully Release Retaining Hooks

Courtesy of AUDI OF AMERICA, LLC

-- Remove the switch -1- toward the rear from the trim -2-.
