Mirror Adjusting Switches -E43- / -E168-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front pull handle. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .

-- Carefully release the retainers using a small screwdriver in direction of -arrows-.

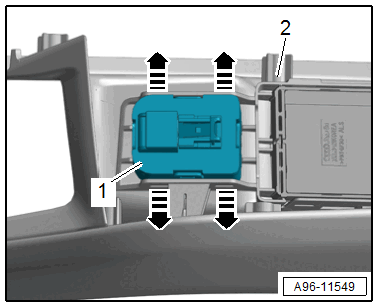

Fig 1: Mirror Adjusting Switches -E43- / -E168-
GWWA96-11549Courtesy of AUDI OF AMERICA, LLC

-- Remove the mirror adjusting switch -1- from the mount -2-.
