Emergency Flasher Button -E229-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

Tip:

There is a hole in the wide vent on both sides of the emergency flasher button.

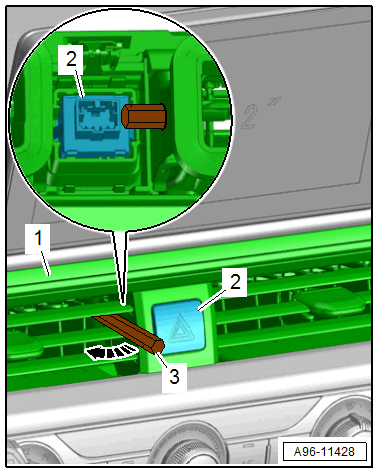

-- Carefully guide the 4 mm hex socket wrench -3- in the hole between the wide vent slats -1- and place on the emergency flasher button -2- as shown.

GWWA96-11428Courtesy of AUDI OF AMERICA, LLC

-- Press the emergency flasher button out of the mounting in direction of -arrow-.

-- Disconnect the connector.
