Electromechanical Parking Brake Button -E538- /-AUTO HOLD- Button -E540-, REMOVING AND INSTALLING, AUTOMATIC TRANSMISSION: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
Electromechanical Parking Brake Button -E538- :
-- Carefully release the retainers using a small screwdriver in direction of -arrows-.
-- Press the button -1- out of the selector lever transmission range display -2-.

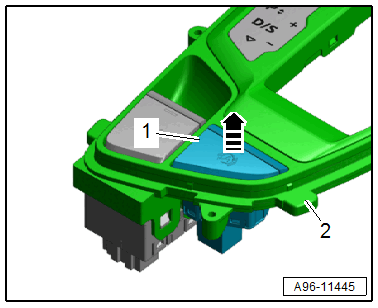

-AUTO HOLD- Button -E540- :
-- Press the button -1- out of the selector lever transmission range display -2- in direction of -arrow-.
