Driver/Front Passenger Seat Memory Settings Control Head -E464- / -E465-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the interior door mechanism decorative trim. Refer to OVERVIEW - FRONT DOOR TRIM PANEL .

-- Disconnect the connector -2-.

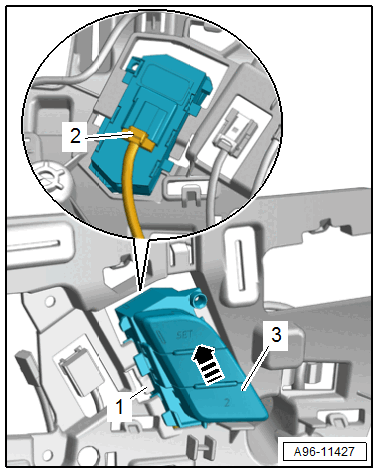

GWWA96-11427Courtesy of AUDI OF AMERICA, LLC

-- Push the tab -1- slightly to the rear and remove the control head -3- from the mount at the same time in the direction of -arrow-.

-- Remove the control head.
