Driver/Front Passenger Seat Memory Settings Control Head -E464- / -E465-, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

-- Connect the connector.

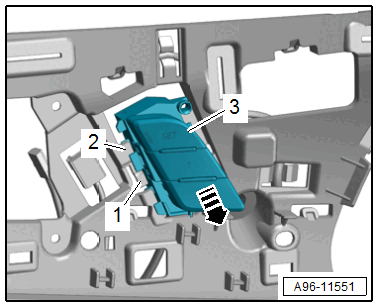

-- Place the control head -3- on the mount -2- and push downward -arrow- until the tab -1- clicks into place.

GWWA96-11551Courtesy of AUDI OF AMERICA, LLC
